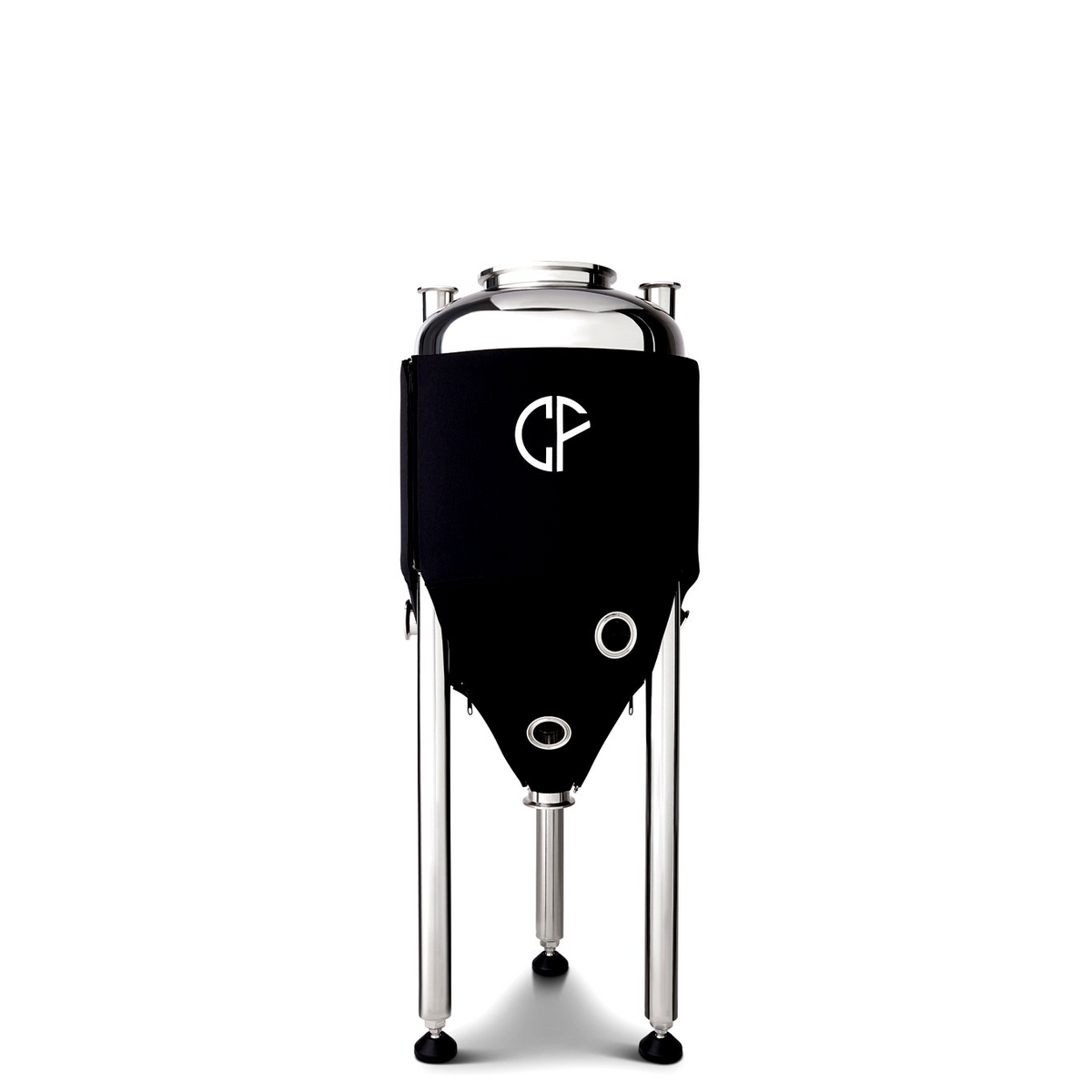

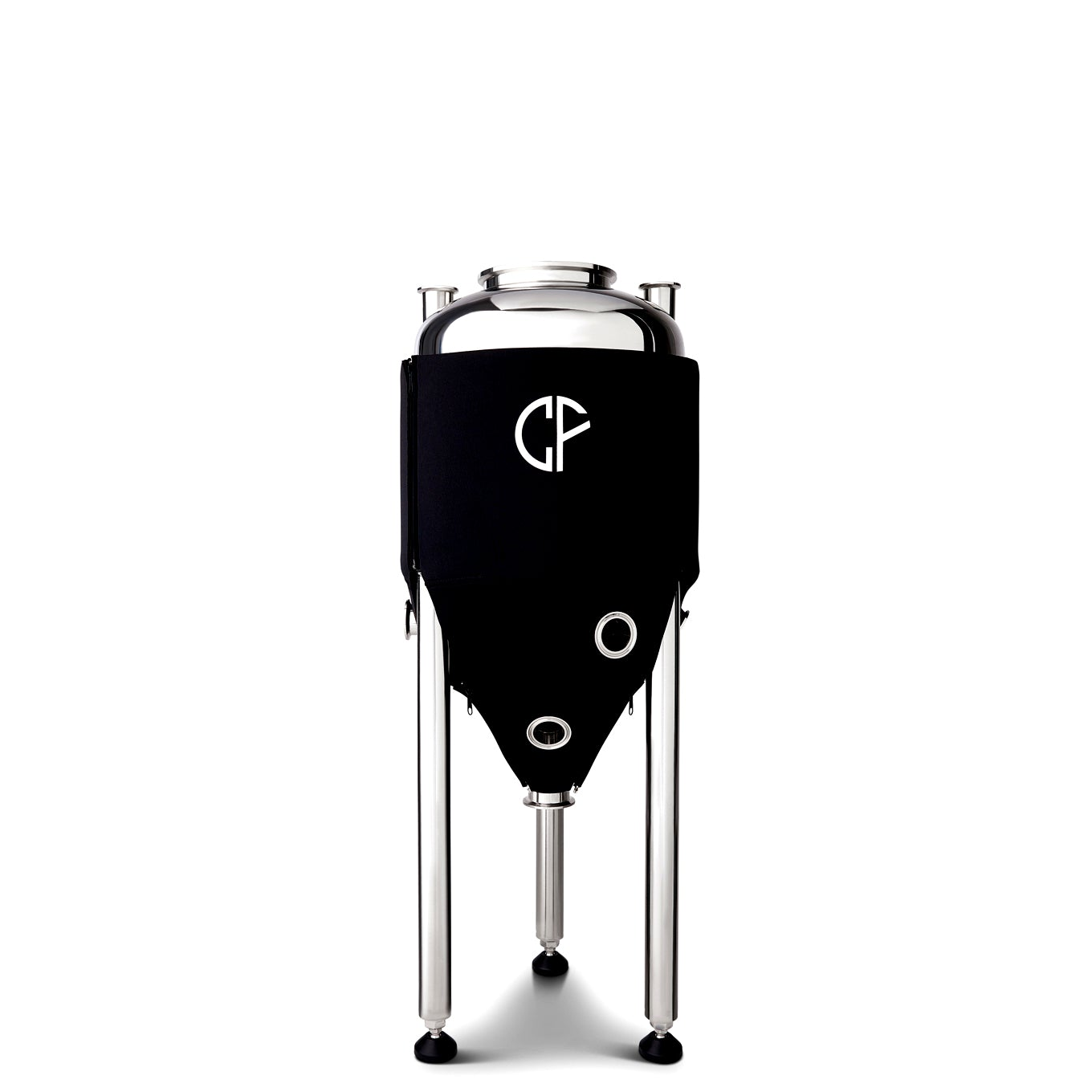

JF8 Tank Only
Couldn't load pickup availability
Have questions or need help with a custom configuration? Ask an expert
ARE YOU A CONFIDENT BUILDER?
Full customization is what we're all about here. Select this tank-only model to build your tank from the ground up, adding accessories individually to match your brewing style. Have existing tri-clamp accessories already on hand? Perfect, bring those along and purchase only the accessories you need. Still want help with some last details? Don't hesitate to contact us for guidance, we'll help match you with the perfect configuration.

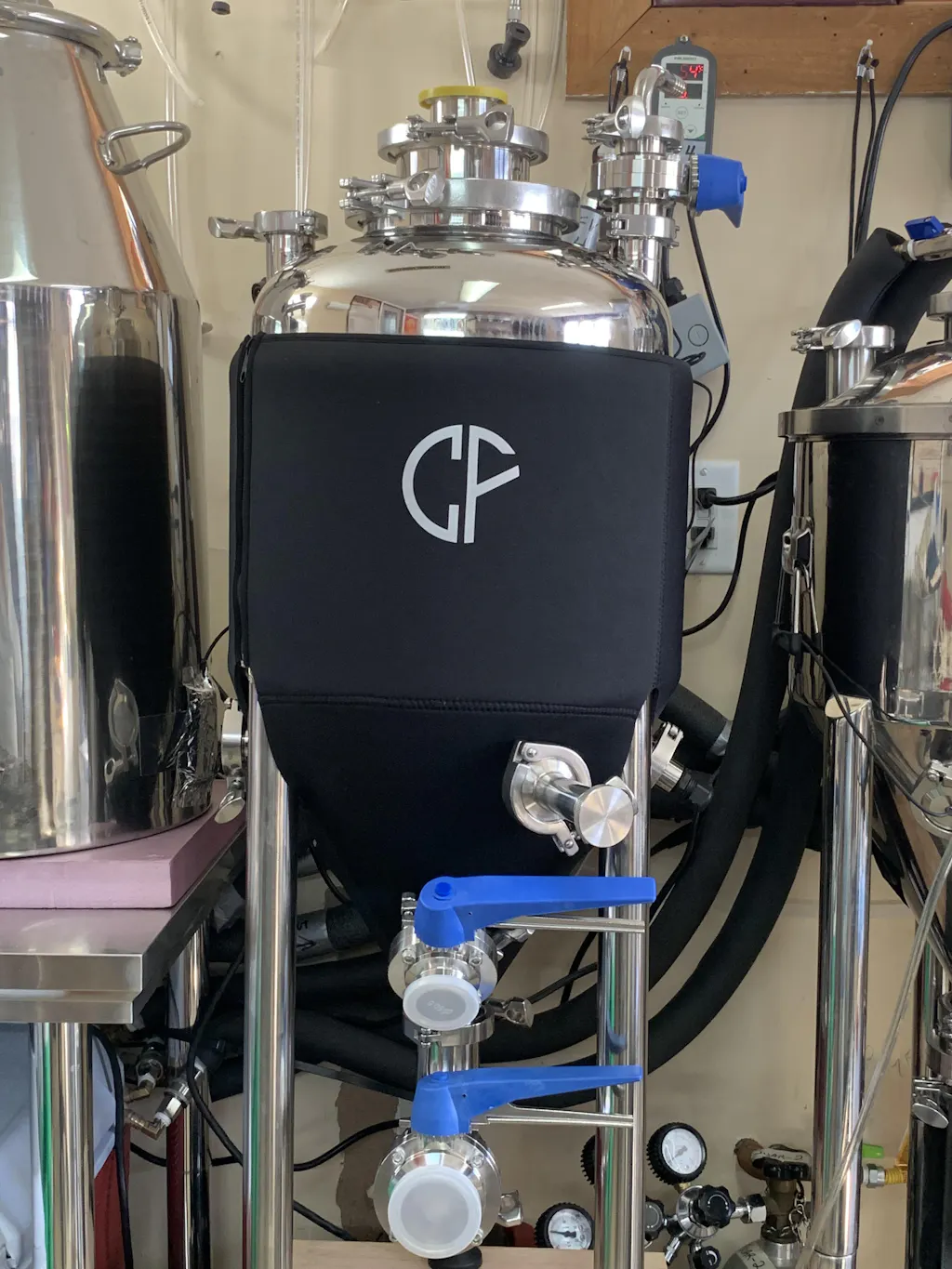

FREE GIFT: Get a 5mm neoprene insulation jacket with any JF8 tank purchase. Quantities limited!
- Heavy-duty 3mm stainless steel full body wall thickness for maximum durability, corrosion resistance, and weight stability
- Built-in cooling jacket for precision temperature control (from ambient to near-freezing temps) for fermentation, cold crashing, and carbonation. Click here to learn more about built-in cooling jackets.
- 100% sanitary tri clamp system for contamination prevention, accessory versatility, and clean-in-place (CIP) capability
- 15 PSI operating pressure (30 PSI max pressure) enables natural or forced carbonation, pressure fermentation, and oxygen-free transfers to kegs or bottles
- 60-degree cone angle to help maximize settling of yeast and sediment
- Classic 3-leg design ensures natural stability vs 4 legs and maximizes accessible working space at conical bottom
- 6” main head port for easy access with optional 6” to 3” reducer for large dry hop additions, clean-in-place system (CIP), or floating dip tube assembly
- Three 1.5” head ports for full accessory flexibility, including blow off assemblies, PRVs, pressure gauges, spunding valves, and dry hop additions
- Two 1.5” ports on tank backside (and out of the way) for glycol IN and OUT connections
- Angled 1.5" port on side of cone for ideal thermowell reach and placement at center of tank
- Horizontal 1.5" port on side of cone for carbonation stone, lower thermowell placement for smaller batches, or optional heating element
- Front-facing 1.5" horizontal port on cone for sampling valve or other accessories
- Front-facing 1.5" angled racking port enables maximum reach into cone when paired with a racking arm
- 2” bottom dump port for racking off yeast and sediment (pre or post fermentation) and optional sight glass for improved visibility
- Flexible batch capacity up to 7 gallons (with 20% headspace)
Click here to see exactly which items are included in each JF8 configuration
Click here to compare features across different JF8 configurations
Click here for detailed JF8 specifications
Click here to open or download the latest JF8 User Manual for details and guidance on setting up your new jacketed unitank.
Use this chart to calculate the volume of liquid inside your JF8 jacketed unitank. Access a print-friendly pdf version here.
