JF8 Fundamental Brewer
Couldn't load pickup availability
Have questions or need help with a custom configuration? Ask an expert
ARE YOU A FUNDAMENTAL BREWER?

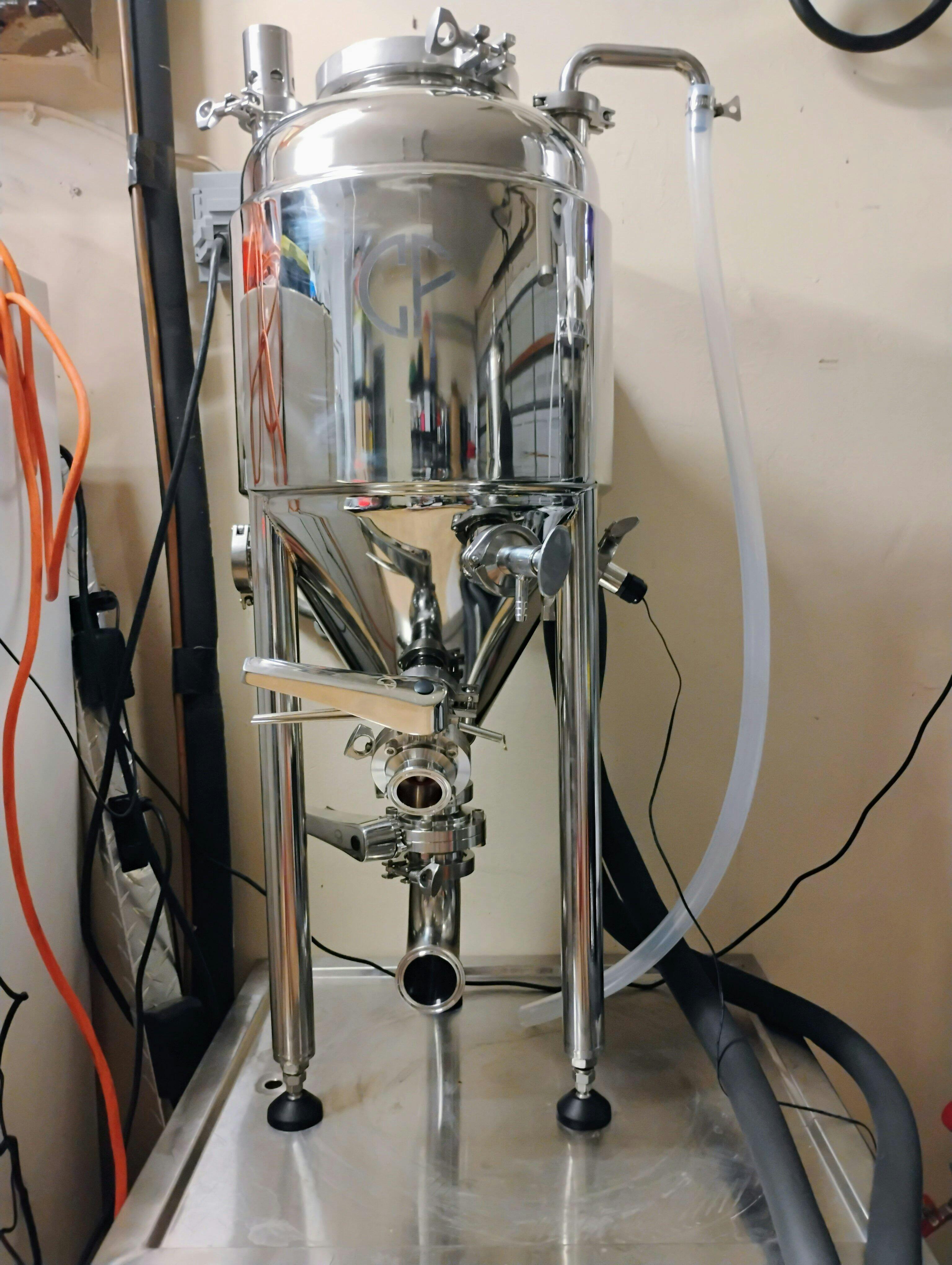

This tank is for the brewer who doesn't need too much to make great beer, but can't resist the precision and convenience of a pro-grade jacketed cooling solution and pressure-ready system. It's a wise investment, and you can scale up later if and when you're ready.
CONFIGURATION HIGHLIGHTS
- Short-style blow off arm
- Wide body 15 PSI pressure relief valve
- Rotatable racking arm with butterfly valve for hassle-free transfers
- 6" thermowell with cord-grip for temperature monitoring and cooling control
- 90 degree dump elbow with butterfly valve for easy yeast dumps and harvesting

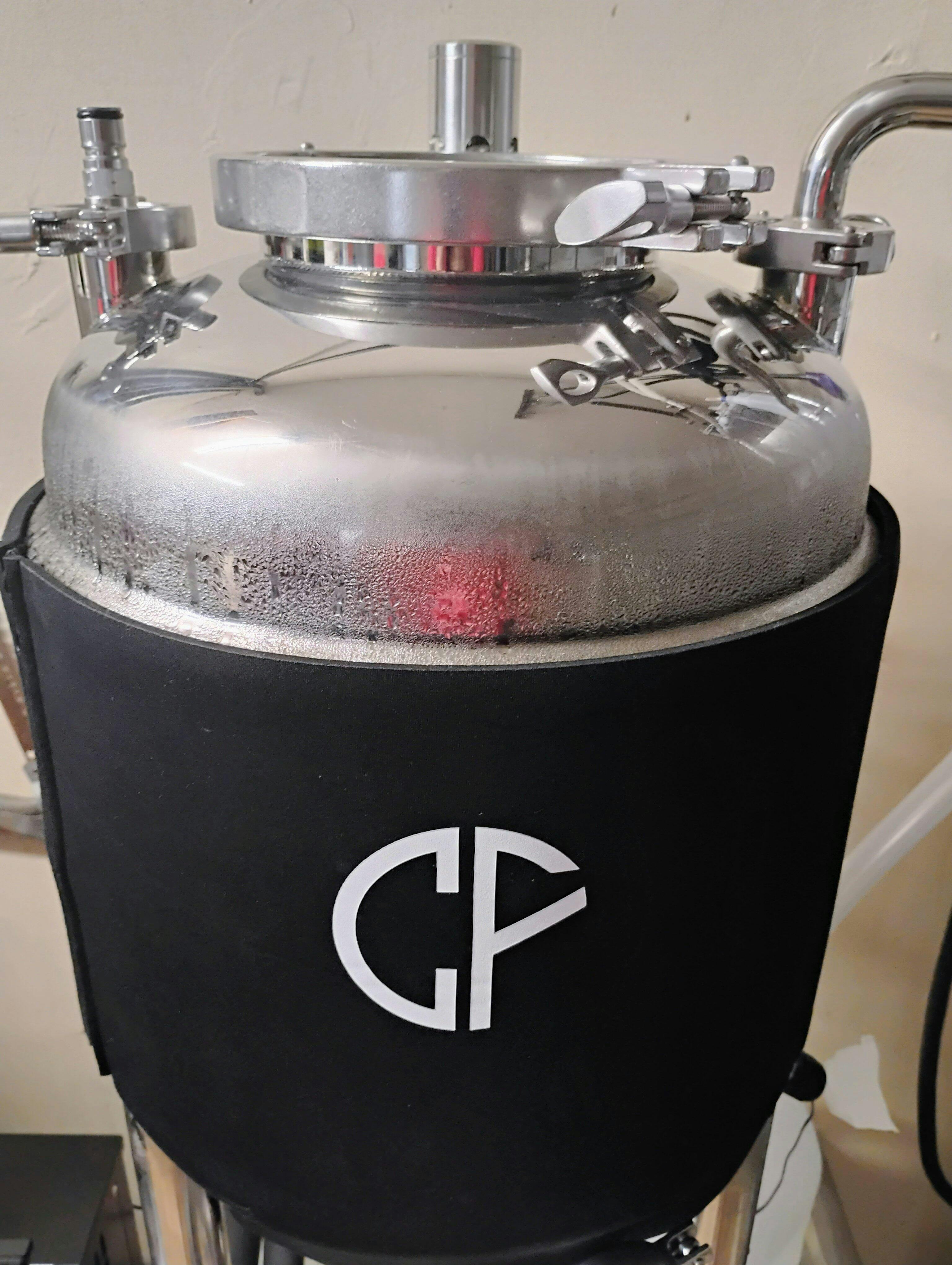

- FREE GIFT: 5mm neoprene insulation jacket (quantities limited!)
- Heavy-duty 3mm stainless steel full body wall thickness for maximum durability, corrosion resistance, and weight stability
- Glycol cooling jacket for precision temperature control (from ambient to near-freezing temps) for fermentation, cold crashing, and carbonation
- 100% sanitary tri clamp system for contamination prevention, accessory versatility, and clean-in-place (CIP) capability
- 15 PSI operating pressure (30 PSI max pressure) enables natural or forced carbonation, pressure fermentation, and oxygen-free transfers to kegs or bottles
- 60-degree cone angle to help maximize settling of yeast and sediment
- Classic 3-leg design ensures natural stability vs 4 legs and maximizes accessible working space at conical bottom
- 6” main head port for easy access with optional 6” to 3” reducer for large dry hop additions, clean-in-place system (CIP), or floating dip tube assembly
- Three 1.5” head ports for full accessory flexibility, including blow off assemblies, PRVs, pressure gauges, spunding valves, and dry hop additions
- Two 1.5” ports on tank backside (and out of the way) for glycol IN and OUT connections
- Angled 1.5" port on side of cone for ideal thermowell reach and placement at center of tank
- Horizontal 1.5" port on side of cone for carbonation stone, lower thermowell placement for smaller batches, or optional heating element
- Front-facing 1.5" horizontal port on cone for sampling valve or other accessories
- Front-facing 1.5" angled racking port enables maximum reach into cone when paired with a racking arm
- 2” bottom dump port for racking off yeast and sediment (pre or post fermentation) and optional sight glass for improved visibility
- Flexible batch capacity up to 7 gallons (with 20% headspace)
Click here to see exactly which items are included in each JF8 configuration
Click here to compare features across different JF8 configurations
Click here for detailed JF8 specifications
Click here to open or download the latest JF8 User Manual for details and guidance on setting up your new jacketed unitank.
Use this chart to calculate the volume of liquid inside your JF8 jacketed unitank. Access a print-friendly pdf version here.
