Bevel Seat Solid End Cap | 1" | 316L Stainless | 16A

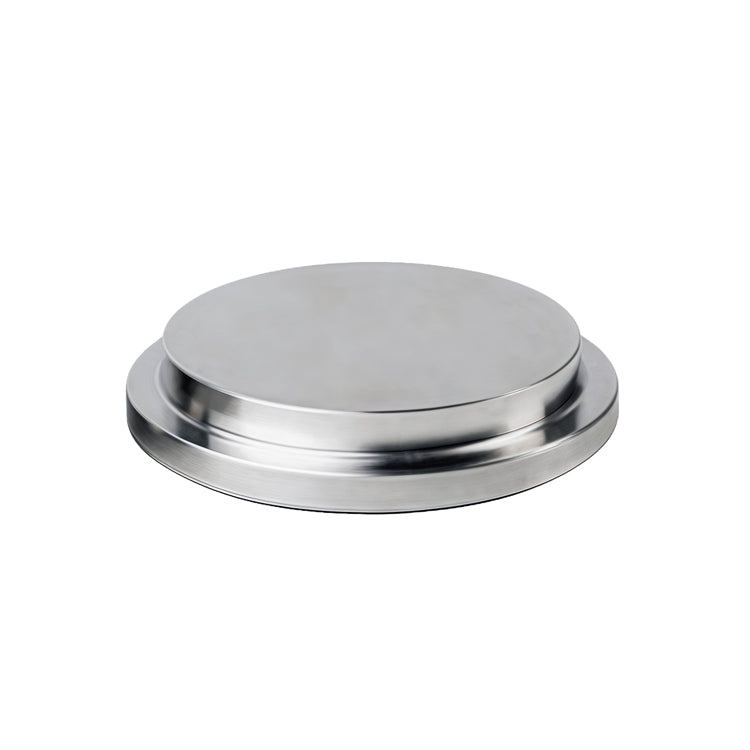

Bevel Seat Solid End Cap (16A) – 316L Stainless Steel

Bevel Seat Solid End Caps (16A) provide a fast, hygienic method of sealing bevel seat process lines when not in use. Secured to a threaded bevel ferrule with a union hex nut, these caps protect sanitary piping from contamination while maintaining system rigidity.

Manufactured from 316L stainless steel and polished to a 32Ra sanitary finish, the caps are 3-A Certified and offer enhanced corrosion resistance, making them well suited for aggressive cleaning regimens, high-purity systems, and pharmaceutical applications. Available in sizes up to 4" OD and fully compatible with bevel seat fittings from leading sanitary brands.

FEATURES

• 3-A Sanitary Certified
• 316L Stainless Steel construction for superior corrosion resistance
• Polished ID/OD with 32Ra finish
• Sizes up to 4" OD
• Secures to threaded bevel ferrule with union hex nut
• Provides secure, contamination-resistant line closure

APPLICATIONS & COMPATIBILITY

Ideal for terminating process lines during shutdown, maintenance, or reconfiguration; dimensionally compatible with bevel seat unions from leading sanitary brands.

QUALITY & MATERIAL VERIFICATION

All bevel seat components undergo in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to verify alloy chemistry and ensure traceability.
